Upgrade Your Infrastructure Performance for the New AIoT Era

Advantech, a leading industrial and network edge AI solution provider, has announced the launch of twelve new server platforms based on the 5th gen Intel® Xeon® Scalable processors and Intel® Core™ processors (14th). These cutting-edge products are set to revolutionize the industrial and enterprise computing landscape, addressing the growing demands for heterogeneous AI, edge computing, and high-performance computing applications.

Workload Optimized

Performance

High Scalability

& Reliability

Density & Efficiency

for the Edge

Flexible Business

Model

5th Gen Intel® Xeon® Scalable processors

  • Better performance per watt and further workload acceleration
  • Higher DDR5 speeds, larger share cache, and increased inter-socket bandwidth
  • Pin compatible with preview generation

Intel® Core™ processors (14th)

  • Newest performance hybrid design combining Performance-cores with Efficient–cores supporting up to 24 cores/ 32 threads for outstanding Multi Threaded performance
  • DDR5-4800/DDR5–5600, DDR4-3200
  • Optimized for edge/IoT applications

Network Edge and Open RAN

The SKY-8 series servers are a powerful solution for 5G and beyond, providing optimization for access networks. The SKY-8134S-11 carrier-grade server improves Open RAN DU performance, density, energy efficiency, and cost-effectiveness, featuring up to twelve 25GbE and two 100GbE ports in a compact 1U form factor. The SKY-820V3 is a short-depth server that maximizes PCIe density to integrate high-performance accelerators. Its compact design makes it ideal to consolidate network edge workloads with the objective of improving infrastructure efficiency.

5th Gen Intel® Xeon®

Scalable processors

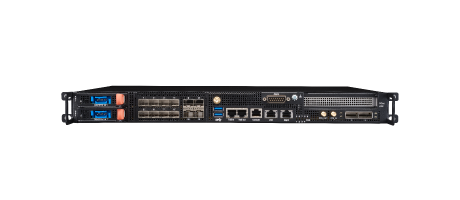

SKY-8134S-11

Edge Server for Open RAN & MEC

  • 1U 5th/4th gen Intel® Xeon® Scalable processors (205W TDP)
  • 8 x DDR5 DIMMs, up to 2TB
  • 1 x PCIe 5.0 or OCP 3.0 slot
  • Up to 12 x 25GbE + 2 x 100GbE ports
  • IEEE 1588 PTP, SyncE and integrated GNSS for high-precision timing sync
  • 2 x internal M.2 SATA3/NVMe SSD
  • -40 to +65°C operating temperature range
Learn More

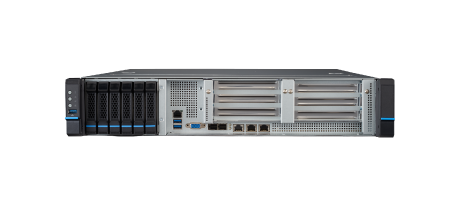

SKY-820V3

Edge & 5G BBU Server

  • 2U dual 5th/4th gen Intel® Xeon® Scalable processors (250W TDP)
  • 16 x DDR5 ECC-REG RDIMM/LRDIMM
  • 4 x PCIe 5.0 x16, can support dual width 3/4L GPU card
  • 2 x 1GbE RJ45, 2 x 10GbE SFP+
  • Up to 6 x 2.5" SATA/SAS drive bays
  • Front I/O access, wide operating temperature


Learn More

Hyper-converged Infrastructure and Storage

For next-generation hyper-converged infrastructure and storage, Advantech has upgraded its server range to leverage increased 5th Gen Intel® Xeon® Scalable processor capacity including fastest data mobility between compute, storage and networking layers thanks to hardware-enabled Intel Data Streaming Accelerator (Intel DSA). These single and multi-node designs are trusted by leading hyper-converged infrastructure, backup and recovery solution providers to meet increasing data center latency and computing needs. They maximize storage performance and help build solid data center solutions for next-generation digital enterprise needs.

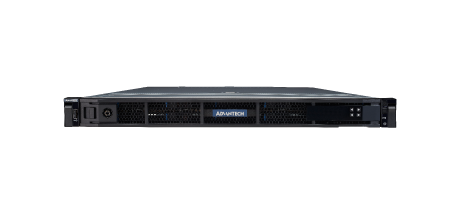

SKY-8134DU

1U High-Performance Server

  • Dual 5th/4th gen Intel® Xeon® Scalable processors (185W TDP)
  • 2 x PCIe 5.0 x16 SLOTS, 1 x ocp 3.0 slots
  • 2 x GbE ports
  • 12 x NVMe/SATA3 SSD, 2 x internal M.2 NVMe/SATA3 SSD
Learn More

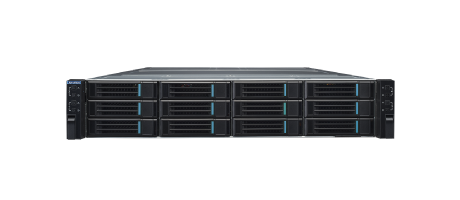

SKY-9234S3

4-Node Server

  • Up to 4 x Hot-Swappable CPU Node boards support single 5th/4th gen Intel® Xeon® Scalable processors
  • 1 x OCP3.0 + 1 x HHHL PCIe 5.0 slot + 1 x U.2 SSD per node
  • Up to 8 x DIMM sockets DDR5 5600MHz RDIMM per Node
  • 12 x 3.5" SATA HDD (4 per node)
Learn More

Industrial AI & Equipment

Advantech introduces new motherboards and servers for advanced machine vision, deep learning, and video analytics in industrial, medical, and IoT sectors. Powered by Intel Deep Learning Boost and the latest Advanced Matrix Extensions, this lineup delivers superior AI inference performance. The motherboards, in ATX, EATX, and proprietary form factors, support up to four double-deck GPU cards.


Manufacturers can leverage 5th gen Intel® Xeon® Scalable processors and Intel® Core™ processors (14th)-based motherboards for edge AI applications like machine automation and vision. Flexible deployment options include standard microATX and ATX form factors or bundled with the Advantech HPC server chassis.


With support for DDR5 ECC/Non-ECC UDIMMs up to 128GB and versatile PCIe expansion slots, these industrial motherboards excel in compute-intensive edge AI tasks. Ideal for low-power, compact, and wide-temperature-range industrial edge environments.

Intel® Core™ processors (14th)

5th Gen Intel® Xeon®

Scalable processors

SKY-640V2

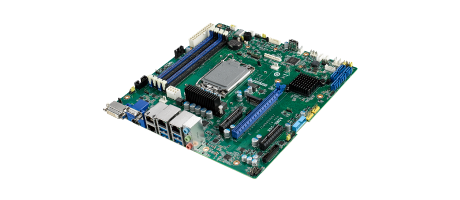

ASMB-588

MicroATX Server Board

  • Intel® Core™ processors (14th/13th/12th)
  • DDR5 4400 MHz UDIMM up to 128GB
  • Features 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
  • 5 x SATA 3 and 1 x M.2 connector(PCIe)
  • Recommeded Chassis: HPC-5000, HPC-7120S




Learn More
ASMB-976

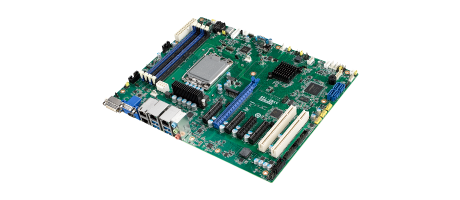

ASMB-788

ATX Server Board

  • Intel® Core™ processors (14th/13th/12th)
  • DDR5 4400 MHz UDIMM up to 128GB
  • Features 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
  • 5 x SATA 3 and 1 x M.2 connector(PCIe)
  • Recommeded Chassis: HPC-8208, HPC-7484




Learn More
SKY-640V2

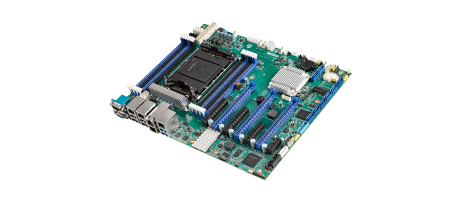

ASMB-817

ATX Server Board

  • 5th/4th gen Intel® Xeon® Scalable processors
  • DDR5 5600 MHz RDIMM up to 2 TB
  • Features 3 x PCIe x16, 2 x PCIe x8, 1 x PCIe x4, and 1 x PCIe x1
  • 8 x SATA 3 and 1 x M.2 connector (SATA/PCIe compatible)
  • Recommeded Chassis: HPC-7000, HPC-7420




Learn More
SKY-640V2

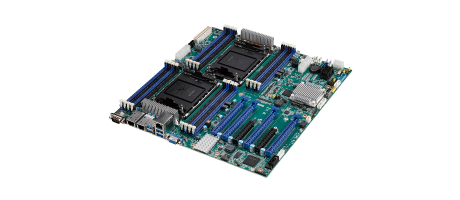

ASMB-927

E-ATX Server Board

  • 5th/4th gen Intel® Xeon® Scalable processors
  • DDR5 5600 MHz RDIMM up to 4 TB
  • Features 4 x PCIe x16, 2 x PCIe x8
  • 9 x SATA 3 and 1 x M.2 connector (SATA/PCIe compatible)
  • Recommeded Chassis: HPC-7484, HPC-7485




Learn More
SKY-640V2

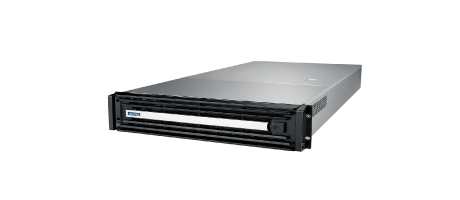

SKY-620V3

2U GPU Server

  • Dual 5th/4th gen Intel® Xeon® Scalable processors
  • DDR5 5600MHz RDIMM up to 4TB
  • Supports 6 x PCle 5.0 x16 double-deck cards
  • Support up to 6 x U.2 NVMe drives and up to 8 x SASA/SATA drives



Learn More
SKY-640V2

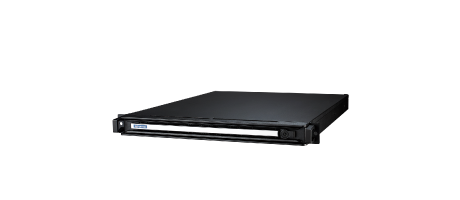

HPC-6120+ASMB-610V3

1U Edge Accelerator Server

  • Intel® Core™ processors (14th/13th/12th)
  • DDR5 5200MHz UDIMM up to 128GB
  • Features 1 x PCIe x16 or 2 x PCIe 5.0 x8, 2 x PCIe 4.0 x4
  • 4 x SATA 3 and 1 x M.2 connector (SATA/PCIe compatible)
  • Flexible I/O Design


Learn More
SKY-640V2

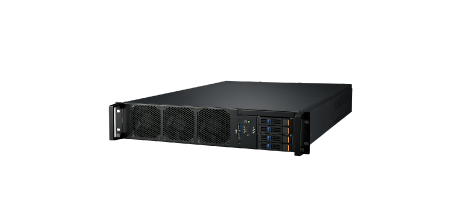

HPC-6240+ASMB-622V3

2U Edge Accelerator Server

  • 5th/4th gen Intel® Xeon® Scalable processors
  • DDR5 5200MHz RDIMM up to 4TB
  • 8 x PCIe 5.0 expansion slots
  • 2 x onboard M.2 2280/22110 (SATA/PCIe compatible)
  • Flexible I/O Design



Learn More
SKY-640V2

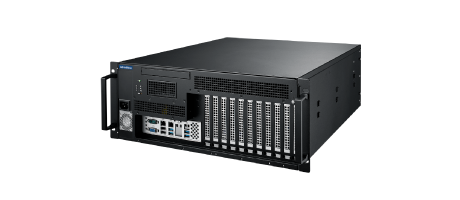

HPC-7420+ASMB-977

4U Edge Accelerator Server

  • Dual 5th/4th gen Intel® Xeon® Scalable processors
  • DDR5 5600MHz RDIMM up to 4TB
  • 10 x PCIe 5.0 expansion slots
  • Rear-accessible system fan without opening top cover for Easy maintenance



Learn More

Enterprise Networking and Security

The new FWA-5072, FWA-6072 and FWA-6172 high-end appliances based on 5th Gen Intel® Xeon® Scalable Processors improve network security application throughput featuring built-in Intel QuickAssist Technology for compression and encryption acceleration.


For network equipment vendors and communication service providers, the new FWA-3034 network appliance scales performance of the new Intel® Core™ 13th gen processor up to 24 hybrid cores to address growing enterprise networking and security challenges. It also integrates Advantech’s management platform which supports Redfish and advanced features such as failsafe remote BIOS and firmware updates, Advanced LAN Bypass with advanced thermal and dual power modules which makes it ideal for business-critical communications applications.


Intel® Core™ processors (14th)

5th Gen Intel® Xeon®

Scalable Processors

SKY-640V2

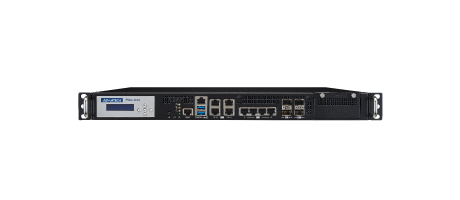

FWA-3034

  • Single socket up to 24 cores
  • 2 x DDR5 UDIMM(ECC and Non-ECC), up to 64GB
  • 1 x NMC slot with 100GbE bandwidth
  • 8 x 2.5GbE RJ45, 2 x 1GbE SFP, and 2 x 10GbE SFP+
  • 1 x FH/HL PCIe 4.0 x8 slot
  • 2 x 2.5” SATA SSD and 1 x 2280 M.2 SATA/NVMe SSD
  • 300W Redundant PSU
Learn More
SKY-640V2

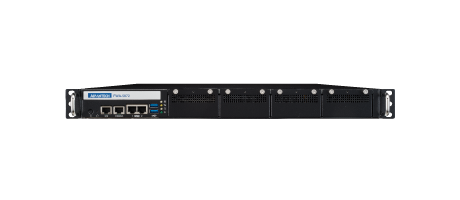

FWA-5072

  • Single socket up to 60 cores
  • 16 x DDR5 RDIMMs, up to 1TB
  • 4 x NMC slots, each 200GbE bandwidth
  • 1 x HH/HL PCIe 4.0 x16 slot
  • 2 x 2.5” SATA SSD and 2 x 2280 M.2 SATA or NVMe SSD
  • 550W Redundant PSU




Learn More
SKY-640V2

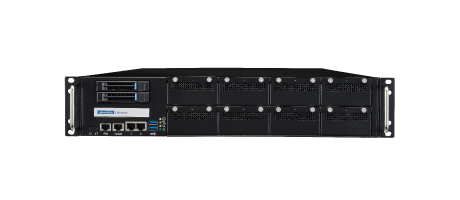

FWA-6072

  • Single socket up to 60 cores
  • 16 x DDR5 RDIMMs, up to 1TB
  • 8 x NMC slots, each 200GbE bandwidth
  • 1 x FH/HL PCIe 4.0 x16 slot
  • 2 x 2.5” SATA SSD and 2 x 2280 M.2 SATA or NVMe SSD
  • 800W Redundant PSU




Learn More
SKY-640V2

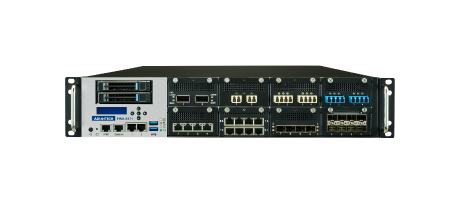

FWA-6172

  • Dual socket up to 104 cores
  • 16 x DDR5 RDIMMs, up to 1TB
  • 8 x NMC slots, each 200GbE bandwidth
  • 1 x double-deck GPU or 2 x FH/HL PCIe 5.0 x16 slot
  • 2 x 2.5” and 2 x 2280 M.2 SATA or NVMe SSD
  • 1200W Redundant PSU



Learn More

Contact Us

For more information or if you are interested in evaluation units, please contact us.
