Advantech MXM Embedded GPUs with NVIDIA RTX Technology and Ampere /Turing Architectures
Advantech MXM GPU cards are an industrial-grade, compact, embedded GPU solution giving high-performance, yet low-power with long-life cycle support. Built on the latest NVIDIA Ampere and Turing architectures, Advantech MXM GPUs deliver the latest RTX technology from NVIDIA and support GDDR6 graphics memory for graphics and intensive-compute tasks. Advantech MXM GPU features real-time ray tracing, accelerated AI, advanced graphics, and high-performance computing capabilities, which are perfect for rendering, virtual workstations, simulation, data science, computing, and XR applications.
NVIDIA Certified Embedded MXM GPU Cards with High Performance
- Designed and manufactured by Advantech - NVIDIA’s Visualization Elite partner.
- MXM GPU cards are built on NVIDIA’s latest Ampere and Turing architectures.
- 2nd gen. RT core and 3rd gen. Tensor core accelerate ray tracing and AI inference.
- Supports GDDR6 graphics memory for boosting data transfer rates and performance.
- Supports 70+ professional software certified by NVIDIA.
Easily Integrated into diverse systems with MXM GPU cards
- High-performance, compact design, and low power consumption with Advantech strict quality control.
- Fits in both fan and fanless systems with customized thermal solutions for wider operating temperatures (0°C to 55 °C) aimed at various applications and scenarios.
- Ensures customization and design flexibility for realizing Edge AI inferencing with high computing performance within system constraints.
Industrial Design with Longevity Supports
- MXM GPU cards feature over 5-year longevity extended product life support (better than 1-year consumer-level GPU cards.)
- Advantech provides strict revision management and engineering change control to reduce re-validation and compatibility issues.
- Advantech offers global and local services with 24/7 hotline AE, and global RMA systems for real-time expert advisors.

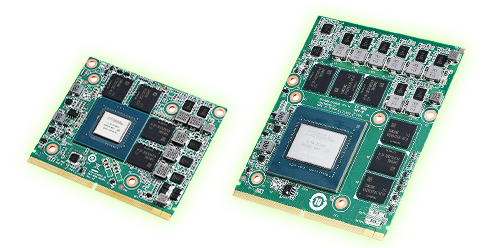

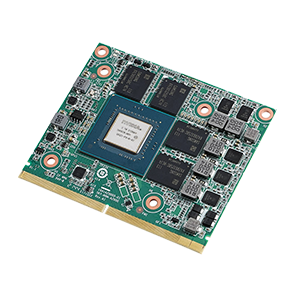

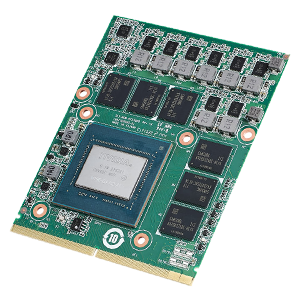

The Latest NVIDIA Embedded MXM GPU Cards
SKY-MXM-A2000-4SDA
MXM 3.1 Type A NVIDIA® Quadro® Embedded
A2000 with DP 1.4a
- MXM 3.1 Type A form factor
- 2560 CUDA cores
- 20 RT Cores
- 80 Tensor Cores
- 8.25 TFLOPS
- 4x DP 1.4a
- 4GB GDDR6 memory
- 192GB/s maximum memory bandwidth
SKY-MXM-T1000-4SDB
MXM 3.1 Type A NVIDIA® Quadro® Embedded
T1000 with DP 1.4a
- MXM 3.1 Type A form factor
- 896 CUDA cores
- 2.7 TFLOPS
- 4x DP 1.4a
- 4GB GDDR6 memory
- 192GB/s maximum memory bandwidth
SKY-MXM-R3000-6SDA
MXM 3.1 Type B NVIDIA® Quadro® Embedded
RTX3000 with DP 1.4a
- MXM 3.1 Type B form factor
- 1920 CUDA cores
- 30 RT Cores
- 240 Tensor Cores
- 5.3 TFLOPS
- 4x DP 1.48a
- 6GB GDDR6 memory
- 336GB/s maximum memory bandwidth

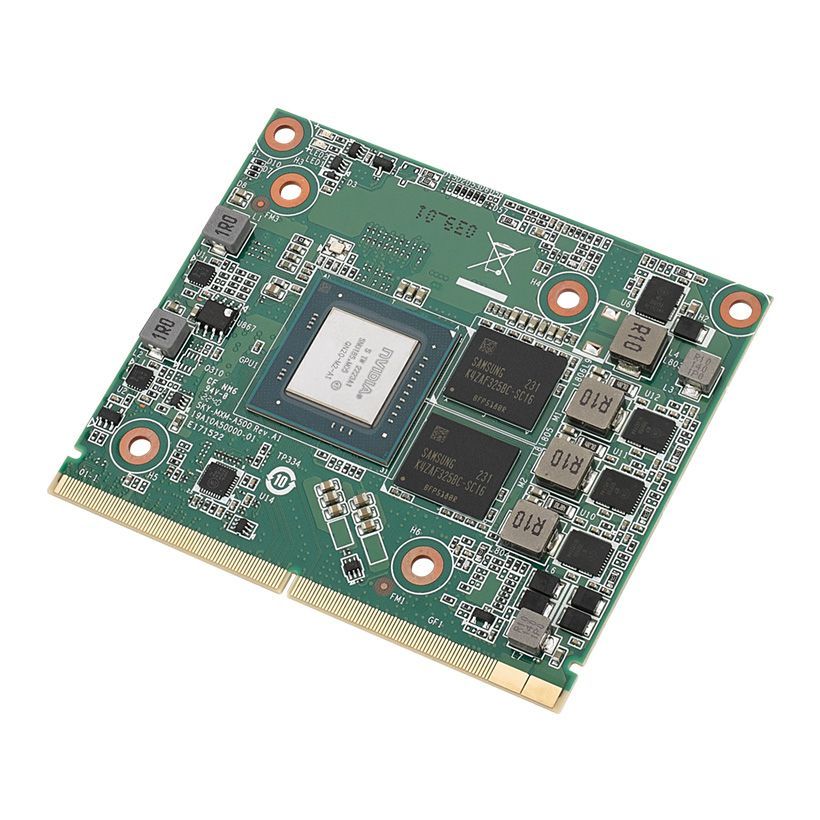

SKY-MXM-A500
MXM 3.1 Type A NVIDIA® Quadro® Embedded A500
- MXM 3.1 TYPE A form factor
- 2048 CUDA cores
- 16 RT cores
- 64 Tensor cores
- 6.54 TFLOPS
- 4GB GDDR6 memory
- 112 GB/s Maximum memory bandwidth
SKY-MXM-A1000
MXM 3.1 Type A NVIDIA® Quadro® Embedded A1000 with DP 1.4a
- MXM 3.1 TYPE A form factor
- 2048 CUDA cores
- 16 RT cores
- 64 Tensor cores
- 6.66 TFLOPS
- 4x DP 1.4a
- 4GB GDDR6 memory
- 224 GB/s Maximum memory bandwidth
SKY-MXM-A4500
MXM 3.1 Type B+ NVIDIA® Quadro® Embedded A4500 with DP 1.4a
- MXM 3.1 TYPE B+ form factor
- 5888 CUDA cores
- 46 RT cores
- 184 Tensor cores
- 17.66 TFLOPS
- 4x DP 1.4a
- 16GB GDDR6 memory
- 512 GB/s Maximum memory bandwidth

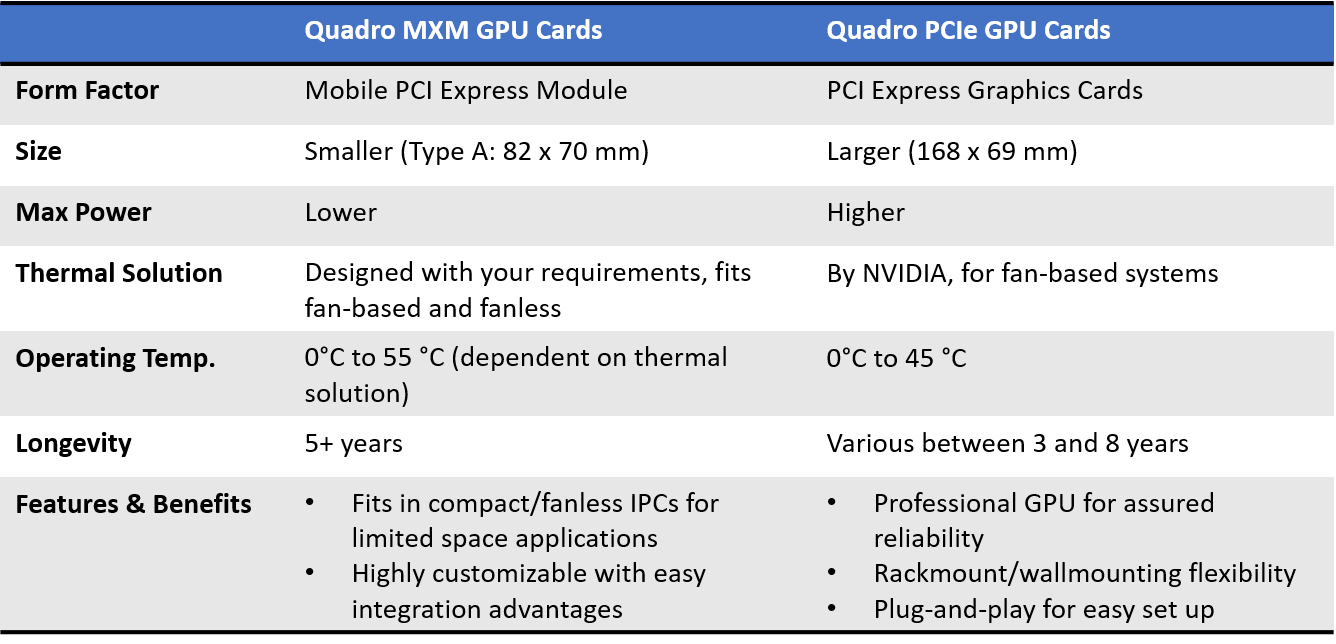

PCIe GPU and MXM GPU Comparison
Advantech, as NVIDIA Elite Partners,
Your Trusted AI Solution Provider

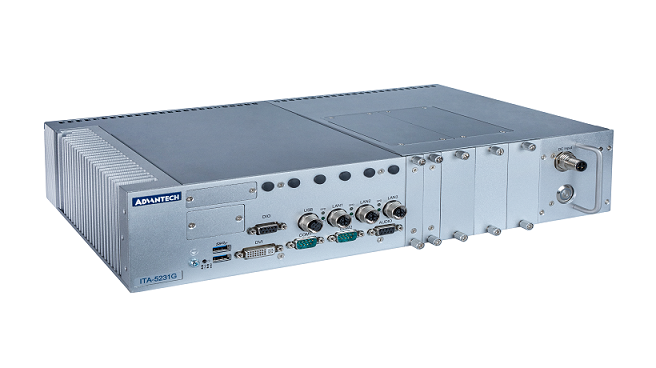

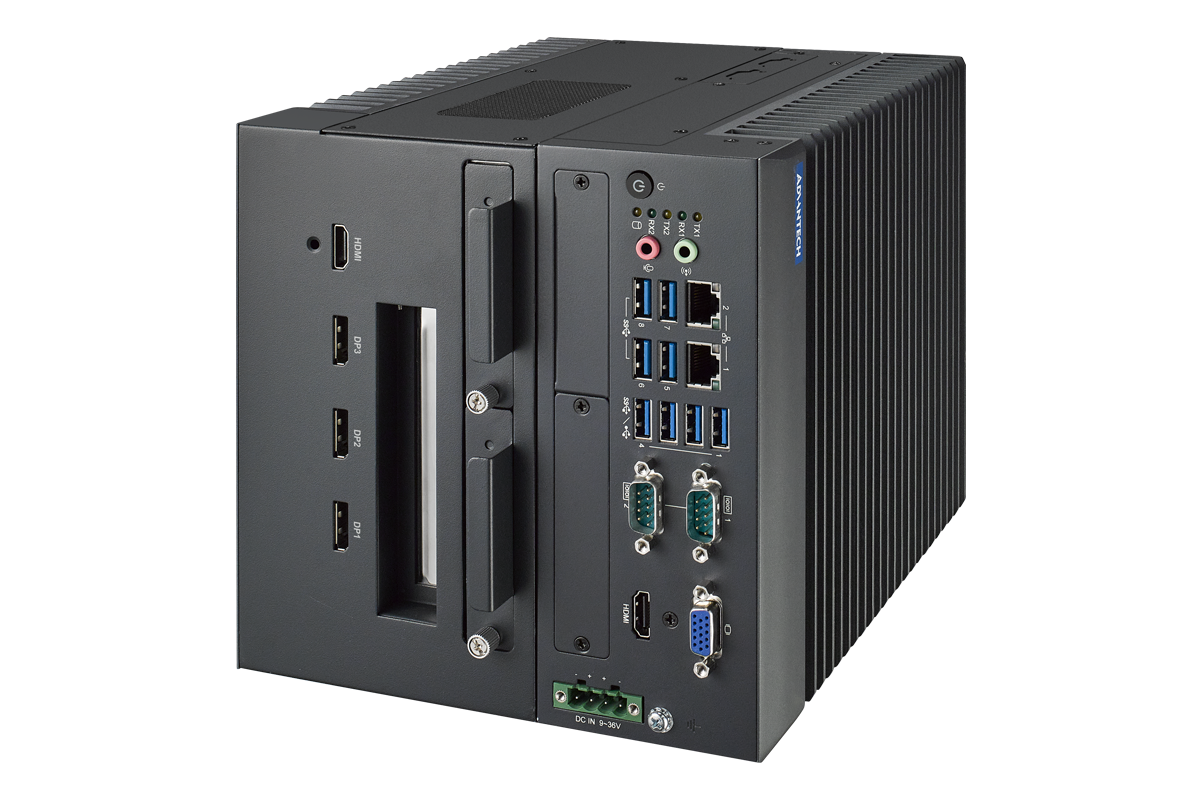

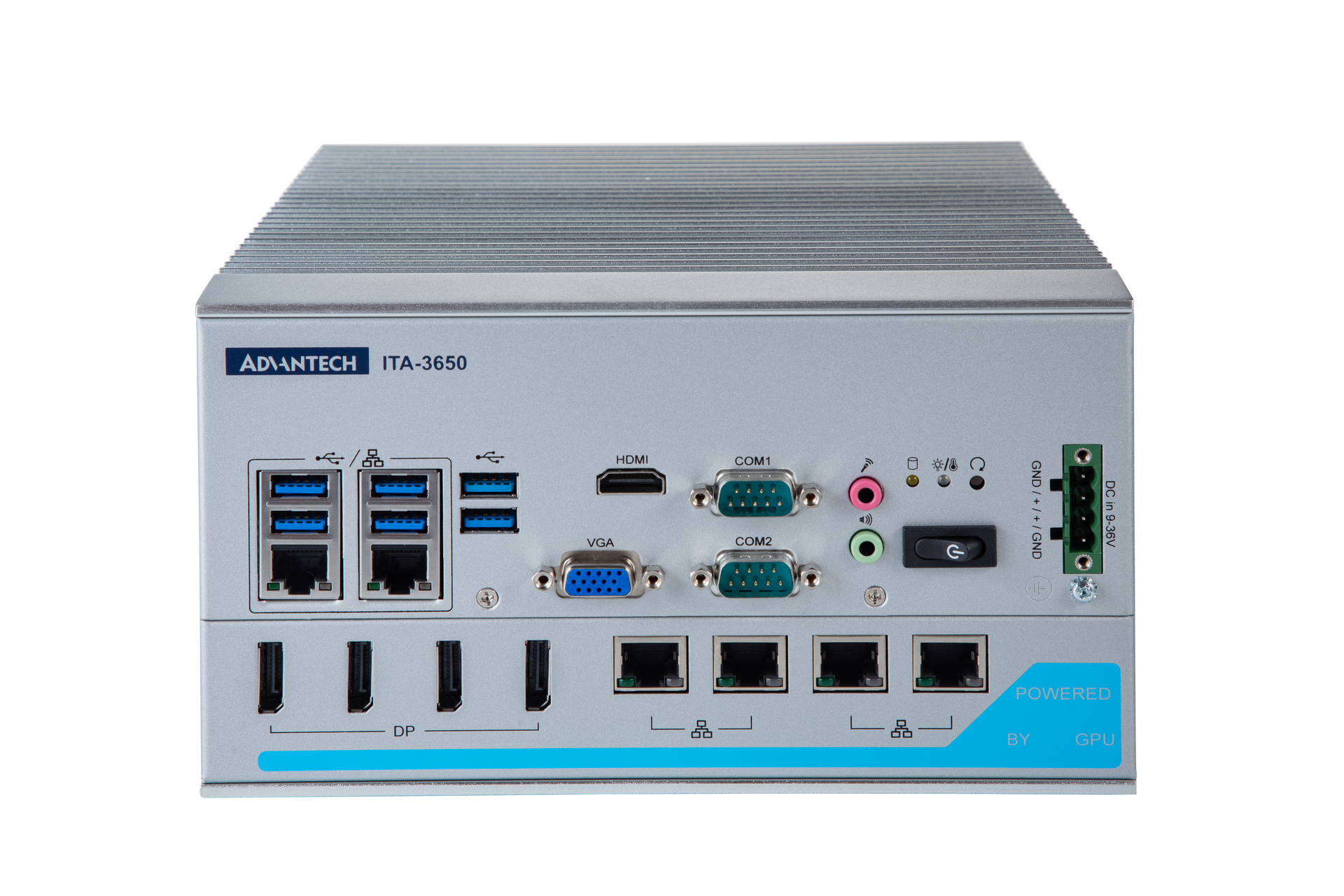

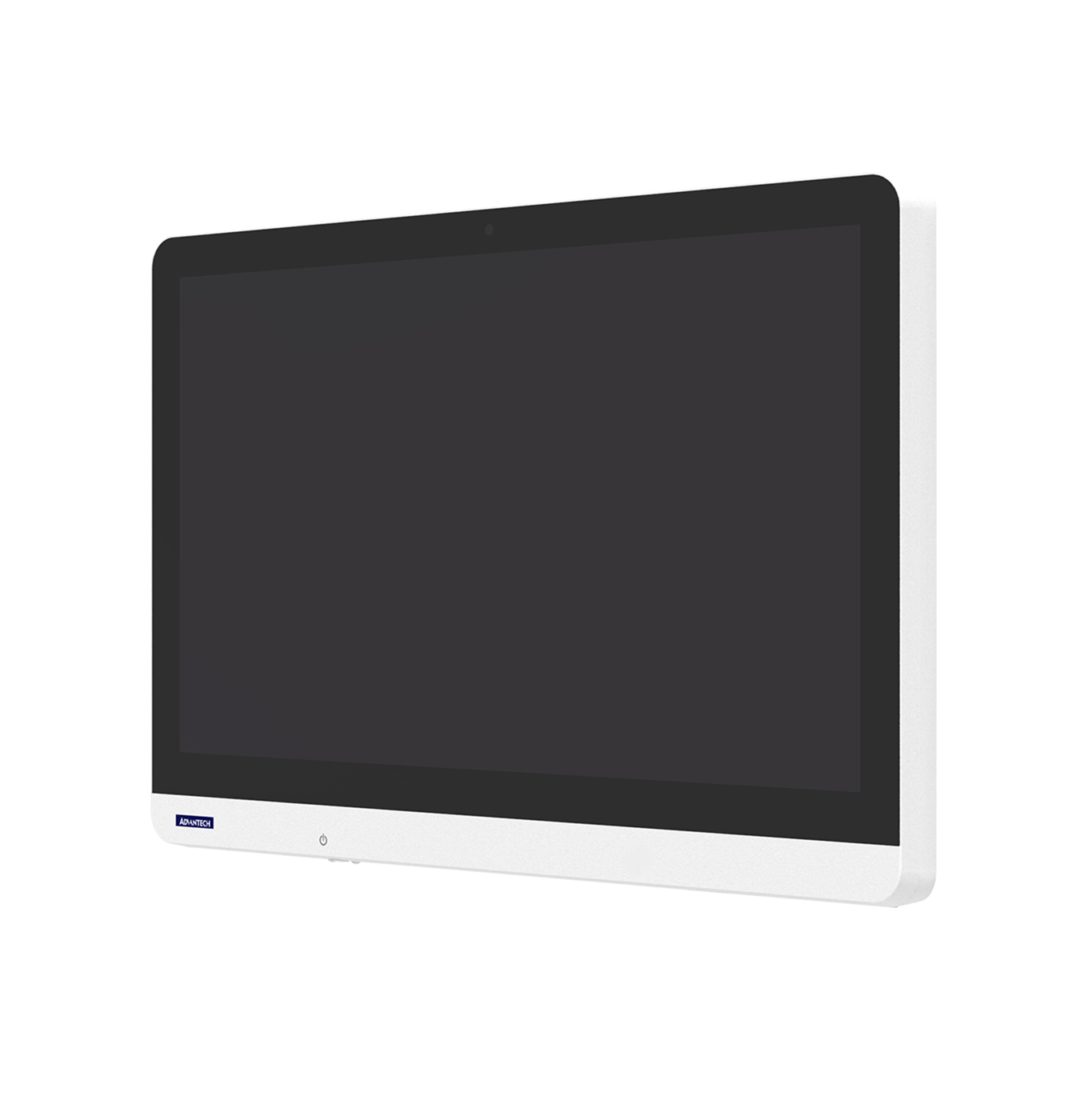

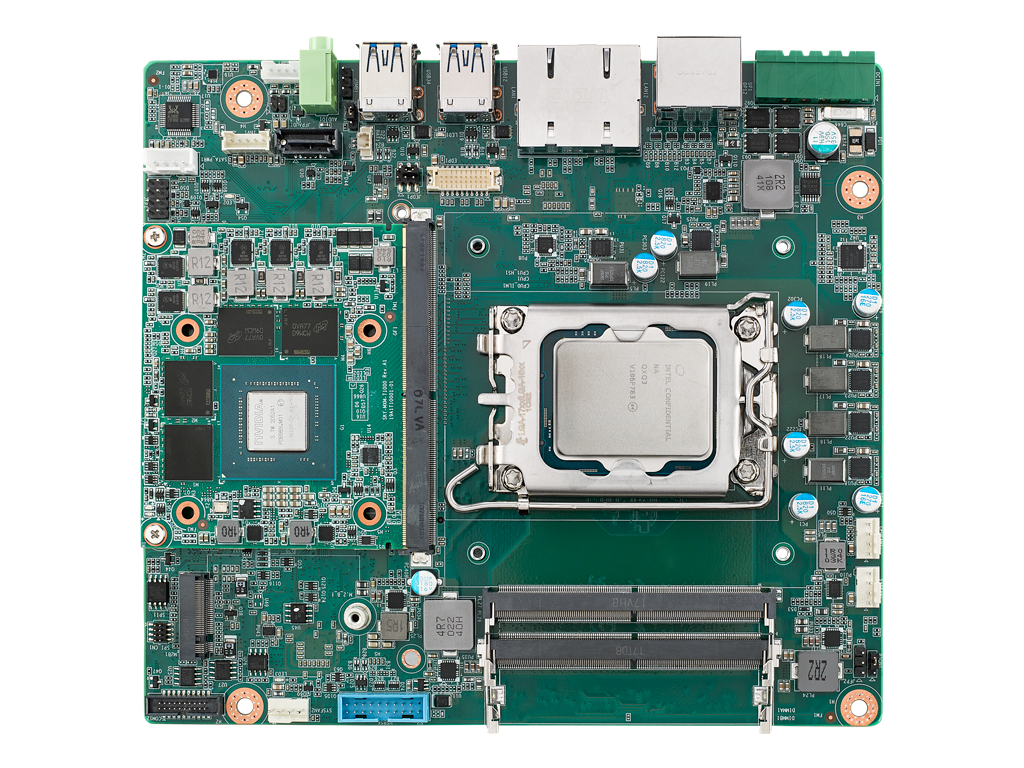

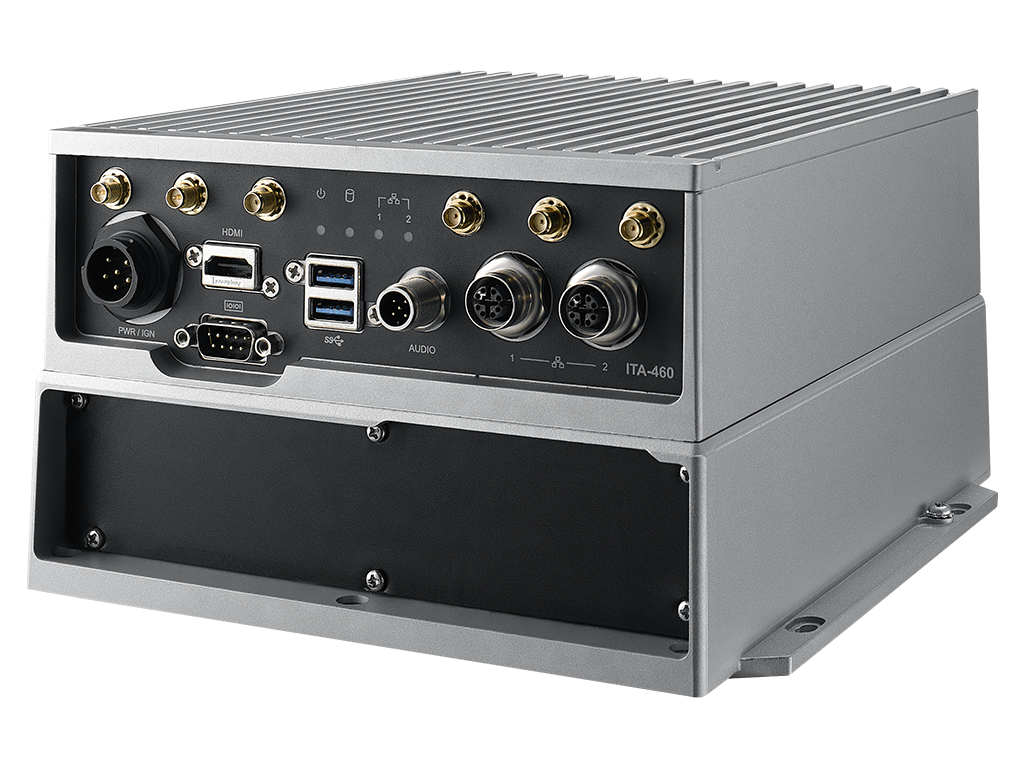

Cross Selling Products
